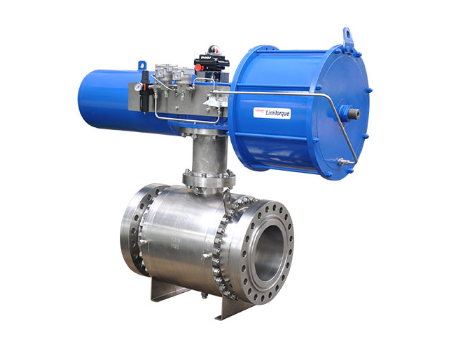

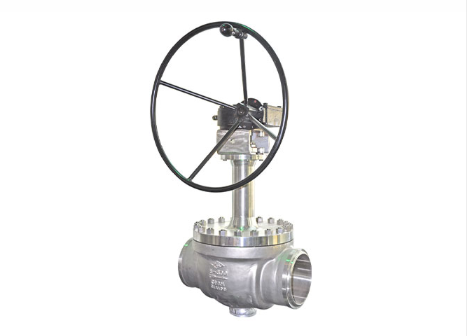

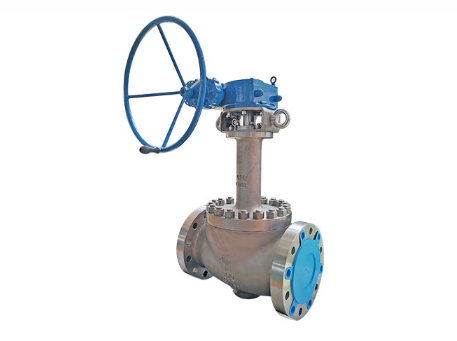

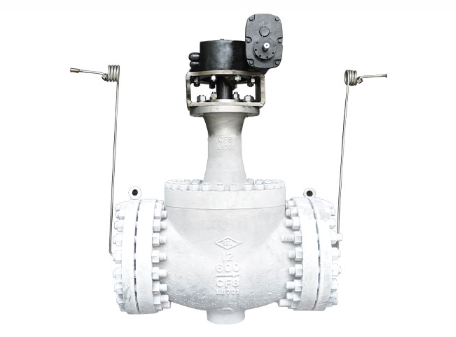

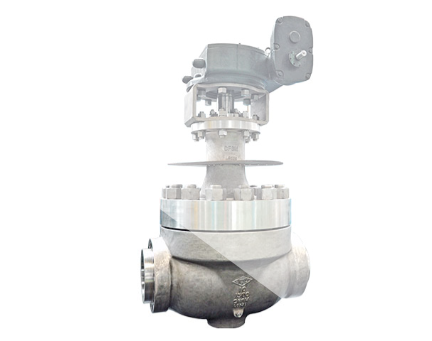

CRYOGENIC TOP MOUNTED BALL VALVE

Design standards: API 6D, API 608, BS6364, MESC 77/200, GB/T 24925

Structural length: API 6D/ASME B16.10/GB/T12221/GB/T19672

Connection standards: ASME B16.5/ASME B16.47/ASME B16.25/GOST33259/EN 1092

GB/T9124/ HG/T20592/ JB/T79

Inspection and testing: API 6D, API 598, GB/T 26480, BS6364

Pressure rating: CL150-CL2500 (PN16-PN 420)

Nominal size: NPS 1 to NPS 48 (DN25 to DN1200)

Valve material: Low temperature carbon steel, stainless steel, etc

Sealing form: Soft seal or metal hard seal

Applicable temperature: -196 ℃ -200 ℃

Drive mode: manual, electric, pneumatic, pneumatic hydraulic linkage

Industry applications: mainly used in low-temperature fields such as LNG, air separation units, liquid oxygen, liquid nitrogen, coal chemical liquid nitrogen washing and methanol washing, low-temperature ethylene, etc.

Performance parameters
